Cellular Telemetry Products

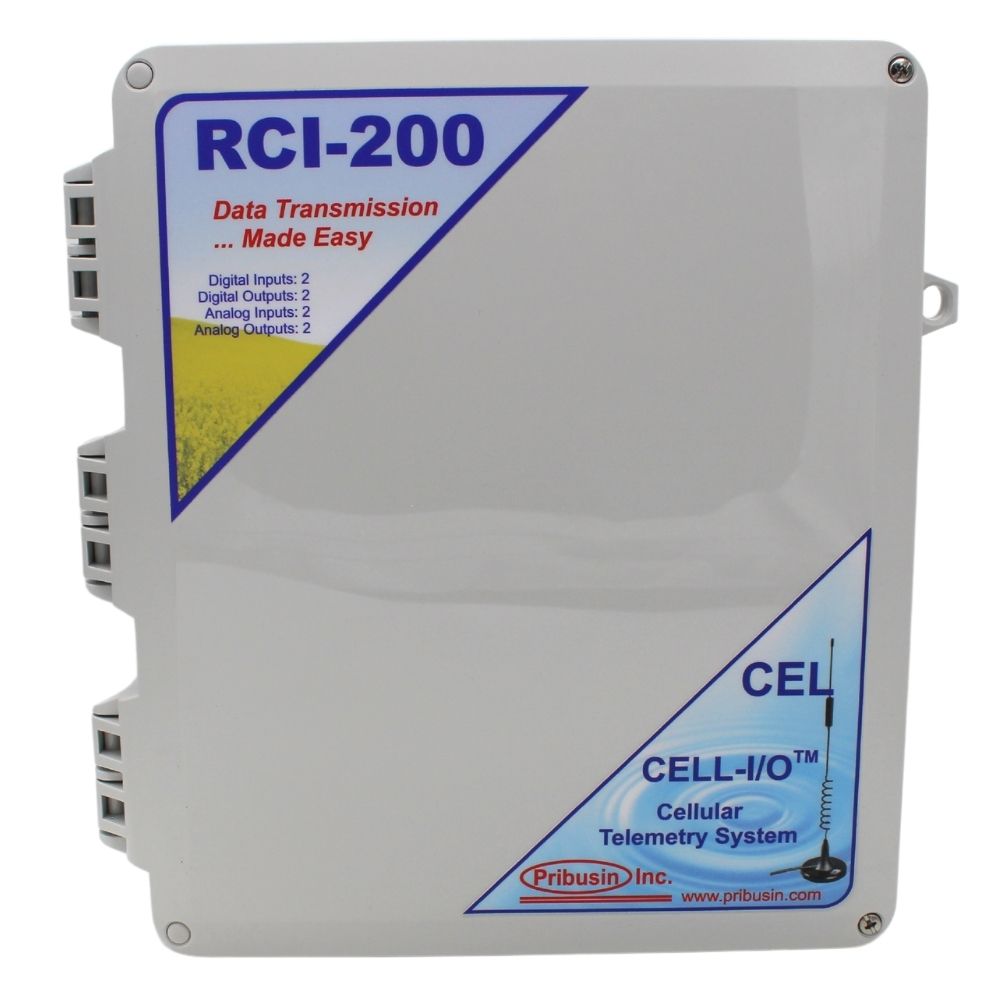

RCI-200-CEL: Cellular Remote Control Signal Interface

Key Features:

Bi-directional Communication using Cellular Network
Point-to-Point or Host-to-Multi-Point Operation
2 Dry Contacts and 2 Analog Inputs
2 'C' Relay Contacts and 2 Analog Outputs
Low monthly data fees with SIM cards
No Calibration Required
Power: 117 VAC 50/60 Hz (Optional 24 VDC)
High Noise Rejection

Function:

The RCI-200-CEL is a bi-directional cellular communication system that exchanges the status of 2 dry contact inputs and 2 analog inputs between a host and remote unit or a host unit and several remote units. A basic system consists of one host station and one or more remote stations.

Connection:

Units require an active cellular connection and must be provisioned through Pribusin Inc’s cellular data service. At this time Pribusin does not offer provisioning with local cellular providers.

Specifications:

Transmission Medium: GPRS or CDMA Cellular Network
Operating Temperature: -20 Deg.C. to +50 Deg.C
Relay Contacts: 10A 1/8Hp @ 125VAC, 6A 1/8Hp @ 277VAC
Power: 117 VAC, 60/50 Hz (24VDC Available)
Enclosure: NEMA4X (NEMA12 available as an option)

RCI-400-CEL: Cellular Remote Control Signal Interface

Key Features:

Bi-directional Communication using Cellular Network
Point-to-Point or Host-to-Multi-Point Operation
2 Dry Contacts and 2 Analog Inputs
2 'C' Relay Contacts and 2 Analog Outputs
Low monthly data fees with SIM cards
No Calibration Required
Power: 117 VAC 50/60 Hz (Optional 24 VDC)
High Noise Rejection

Function:

The RCI-400-CEL is a bi-directional cellular communication system that exchanges the status of 4 dry contact inputs and 4 analog inputs between a host and remote unit or a host unit and several remote units. A basic system consists of one host station and one or more remote stations.

Connection:

Units require an active cellular connection and must be provisioned through Pribusin Inc’s cellular data service. At this time Pribusin does not offer provisioning with local cellular providers.

Specifications:

Transmission Medium: GPRS or CDMA Cellular Network
BAUD Rate: 115200 BAUD
Operating Temperature: -20 Deg.C. to +50 Deg.C
Relay Contacts: 10A 1/8Hp @ 125VAC, 6A 1/8Hp @ 277VAC
Power: 117 VAC, 60/50 Hz (24VDC Available)
Enclosure: NEMA4X (NEMA12 available as an option)
Approvals: ETL 3118354: UL 60950-1-2007; CSA=C22.2 No. 60950-1-07

RCI-800-CEL: Cellular Remote Control Signal Interface

Key Features:

Bi-directional Communication using Cellular Network
Point-to-Point or Host-to-Multi-Point Operation
2 Dry Contacts and 2 Analog Inputs
2 'C' Relay Contacts and 2 Analog Outputs
Low monthly data fees with SIM cards
No Calibration Required
Power: 117 VAC 50/60 Hz (Optional 24 VDC)
High Noise Rejection

Function:

The RCI-200-CEL is a bi-directional cellular communication system that exchanges the status of 8 dry contact inputs and 8 analog inputs between a host and remote unit or a host unit and several remote units. A basic system consists of one host station and one or more remote stations.

Connection:

Units require an active cellular connection and must be provisioned through Pribusin Inc’s cellular data service. At this time Pribusin does not offer provisioning with local cellular providers.

Specifications:

Transmission Medium: GPRS or CDMA Cellular Network
BAUD Rate: 115200 BAUD
Operating Temperature: -20 Deg.C. to +50 Deg.C
Relay Contacts: 10A 1/8Hp @ 125VAC, 6A 1/8Hp @ 277VAC
Power: 117 VAC, 60/50 Hz (24VDC Available)
Enclosure: NEMA4X (NEMA12 available as an option)
Approvals: ETL 3118354: UL 60950-1-2007; CSA=C22.2 No. 60950-1-07
