Leased Phone Line Products

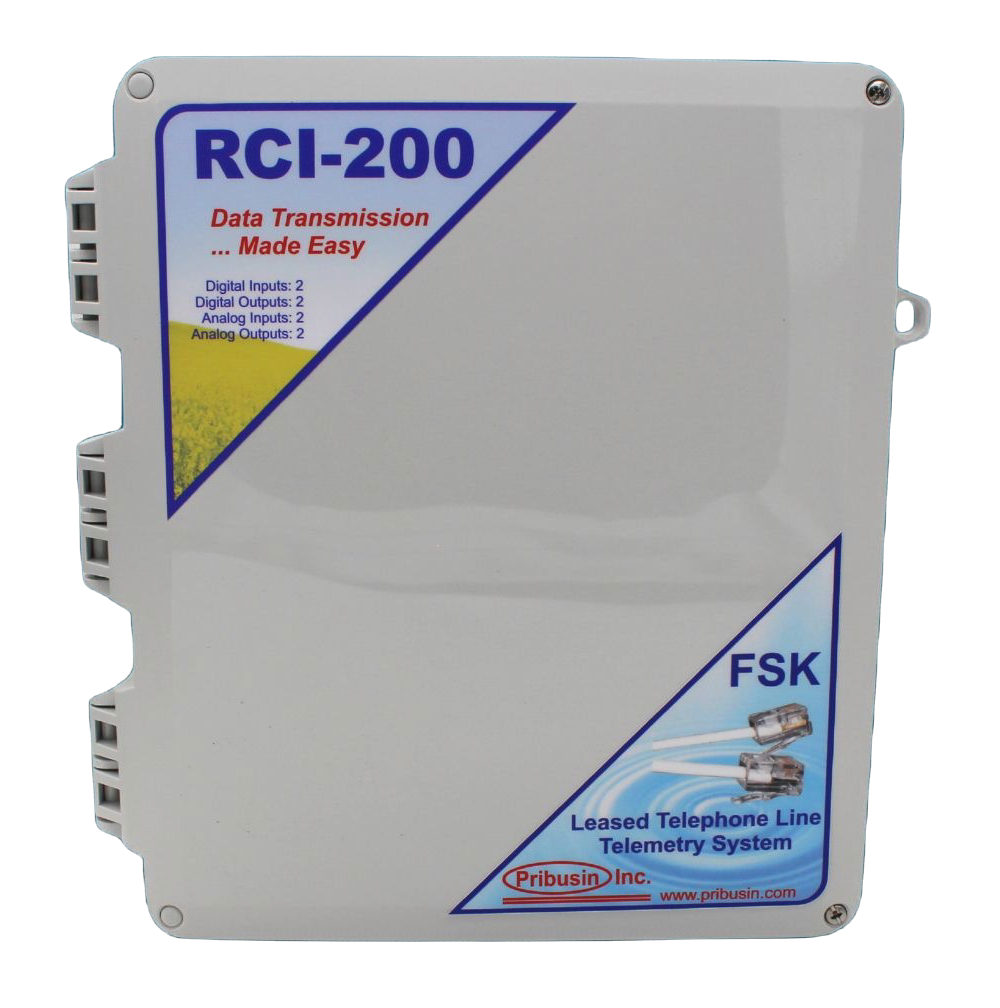

RCI-200-FSK: Leased-Line Remote Control Signal Interface

Key Features:

  • 2 Analog Inputs (0-20mA)
  • 2 Analog Outputs (0-20mA)
  • Bi-directional Communication using a Phone Line
  • Uses MODBUS Protocol for Reliable Data Transfer
  • 2 Dry Contacts and 2 Analog Inputs
  • 2 'C' Relay Contacts and 2 Analog Outputs
  • Uses Analog Half-Duplex Leased Telephone Line
  • No Calibration Required
  • Microprocessor Controlled for High Accuracy
  • Power: 117 VAC 50/60 Hz (Optional 24 VDC)
  • Built-in Overvoltage Protection on Telephone Line
  • High Noise Rejection
  • CSA and NRTL Approved (LR51078)

Function:

The RCI-200-FSK is a bi-directional remote communication system that exchanges the status of 2 dry contact inputs and 2 analog inputs between a master and remote unit or a PC equipped with a modem. A basic system consists of

A) one master station and one remote station each with 2 dry contact and 2 analog inputs and 2 ‘C’ relay contact and analog outputs.

OR

B) several remote stations and one PC with a modem

In system A), the master unit can be set to interrogate the remote continually or periodically. As an alternative, the remote unit may also be configured to call the master upon a change in input status.
In system B), a PC can call several remote units or alternately, remote units may call the PC upon a change in input status.
The RCI-200-FSK may also be used as a remote in a multi-remote system where 2, 4 or 8 remote units at different sites may communicate with one central master. The RCI-800-FSK may be used to serve as the master.

Specifications & Manuals:

  • Input: (2) 0-20mA & (2) Dry contacts
  • Output: (2) 0-20mA & (2) 'C' Contacts
  • Transmission Delay: 5 sec. max., 1 sec. typ.
  • Operating Temperature: -40°C to +50°C
  • Relay Contacts: 10A 1/8Hp @ 125VAC, 6A 1/8Hp @ 277VAC
  • Power: 117 VAC, 60/50 Hz (24VDC Available)

Manual  |  Spec Sheet

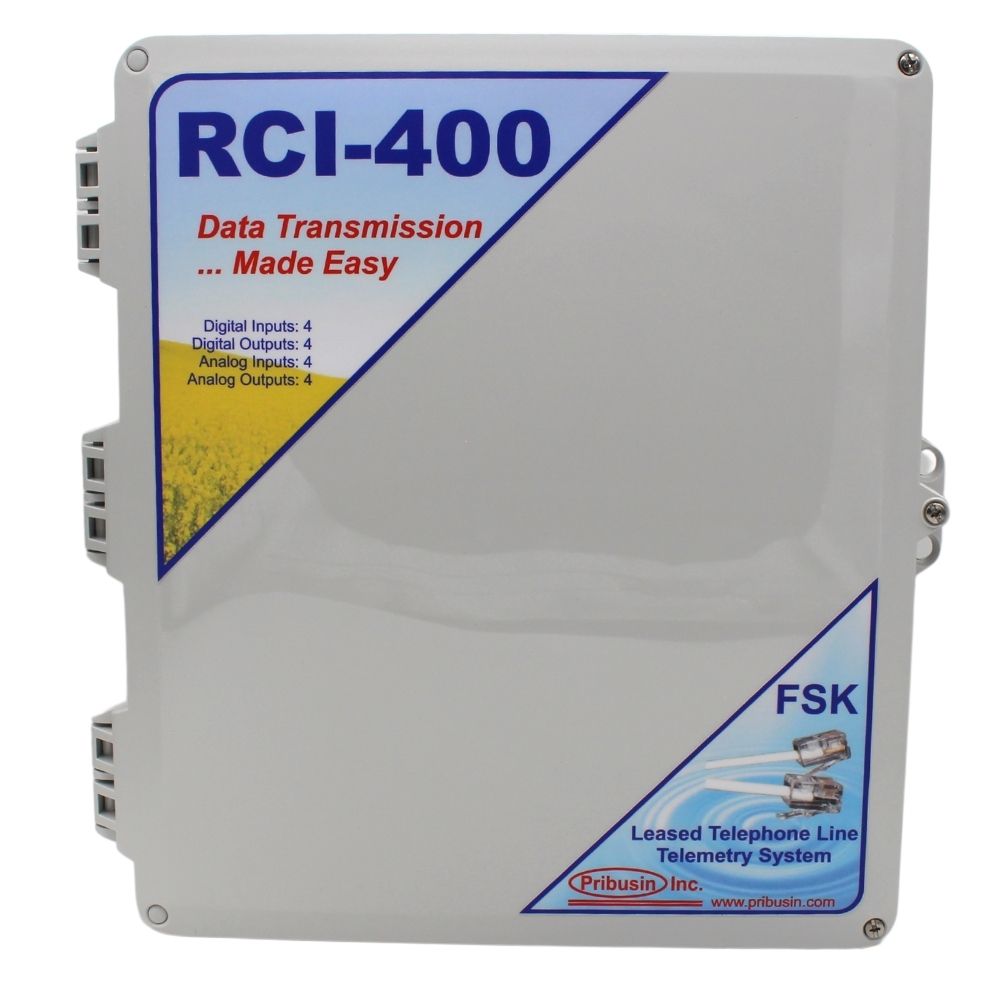

RCI-400-FSK: Leased-Line Remote Control Signal Interface

Key Features

  • 4 Analog Inputs (0-20mA)
  • 4 Analog Outputs (0-20mA)
  • Bi-directional Communication using a Phone Line
  • Uses MODBUS Protocol for Reliable Data Transfer
  • 4 Dry Contacts and 4 Analog Inputs
  • 4 'C' Relay Contacts and 4 Analog Outputs
  • Uses Analog Half-Duplex Leased Telephone Line
  • No Calibration Required
  • Microprocessor Controlled for High Accuracy
  • Power: 117 VAC 50/60 Hz (Optional 24 VDC)
  • Built-in Overvoltage Protection on Telephone Line
  • High Noise Rejection
  • CSA and NRTL Approved (LR51078)

Function:

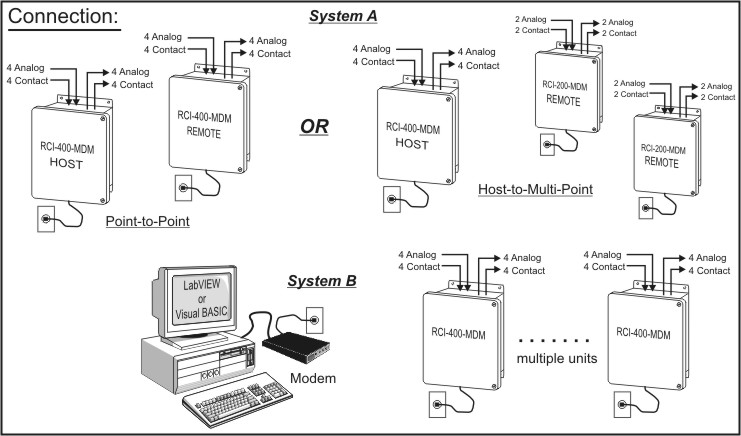

The RCI-400-FSK is a bi-directional remote communication system that exchanges the status of 4 dry contact inputs and 4 analog inputs between a master and remote unit or a PC equipped with a modem. A basic system consists of

A) one master station and one remote station each with 4 dry contact and 4 analog inputs and 4 ‘C’ relay contact and analog outputs.

OR

B) several remote stations and one PC with a modem

In system A), the master unit can be set to interrogate the remote continually or periodically. As an alternative, the remote unit may also be configured to call the master upon a change in input status.
In system B), a PC can call several remote units or alternately, remote units may call the PC upon a change in input status.
The RCI-400-FSK may also be used as a remote in a multi-remote system where 2, 4 or 8 remote units at different sites may communicate with one central master. The RCI-800-FSK may be used to serve as the master.

Specifications & Manuals:

  • Input: (4) 0-20mA & (4) Dry contacts
  • Output: (4) 0-20mA & (4) 'C' Contacts
  • Transmission Delay: 5 sec. max., 1 sec. typ.
  • Operating Temperature: -40°C to +50°C
  • Relay Contacts: 10A 1/8Hp @ 125VAC, 6A 1/8Hp @ 277VAC
  • Power: 117 VAC, 60/50 Hz (24VDC Available)

Manual  |  Spec Sheet

RCI-800-FSK: Leased-Line Remote Control Signal Interface

Key Features:

  • 8 Analog Inputs (0-20mA)
  • 8 Analog Outputs (0-20mA)
  • Bi-directional Communication using a Phone Line
  • Uses MODBUS Protocol for Reliable Data Transfer
  • 8 Dry Contacts and 8 Analog Inputs
  • 8 'C' Relay Contacts and 8 Analog Outputs
  • Uses Analog Half-Duplex Leased Telephone Line
  • No Calibration Required
  • Microprocessor Controlled for High Accuracy
  • Power: 117 VAC 50/60 Hz (Optional 24 VDC)
  • Built-in Overvoltage Protection on Telephone Line
  • High Noise Rejection
  • CSA and NRTL Approved (LR51078)

Function:

The RCI-200 is a bi-directional remote communication system that exchanges the status of 8 dry contact inputs and 8 analog inputs between a master and remote unit or a PC equipped with a modem. A basic system consists of

A) one master station and one remote station each with 8 dry contact and 8 analog inputs and 8 ‘C’ relay contact and analog outputs.

OR

B) several remote stations and one PC with a modem

In system A), the master unit can be set to interrogate the remote continually or periodically. As an alternative, the remote unit may also be configured to call the master upon a change in input status.
In system B), a PC can call several remote units or alternately, remote units may call the PC upon a change in input status.

The RCI-200 may also be used as a remote in a multi-remote system where 2, 4 or 8 remote units at different sites may communicate with one central master. The RCI-200 may be used to serve as the remote.

Specifications & Manuals:

  • Input: (8) 0-20mA & (8) Dry contacts
  • Output: (8) 0-20mA & (8) 'C' Contacts
  • Transmission Delay: 5 sec. max., 1 sec. typ.
  • Operating Temperature: -40°C to +50°C
  • Relay Contacts: 10A 1/8Hp @ 125VAC, 6A 1/8Hp @ 277VAC
  • Power: 117 VAC, 60/50 Hz (24VDC Available)

Manual  |  Spec Sheet
