Fiber Optics Products

RCI-200-FIB: Remote Control Signal Interface With Fiber Optic Link

Key Features:

  • Bi-directional Communication using Fiber Optic Cable
  • Single-Mode or Multi-Mode Media Option
  • ST or SC Connection Option
  • 8 Dry Contact and 8 Analog Inputs
  • 8 ‘C’ Relay Contacts and 8 Analog Outputs
  • Point-to-Point or Host-to-Mulitipoint Topologies
  • No Calibration Required
  • Microprocessor Controlled for High Accuracy
  • Power: 117 VAC 50/60 Hz (Optional 24VDC)
  • High Noise Rejection

Function:

The RCI-800-FIB is a bi-directional data communication system that exchanges the status of 8 dry contact inputs and 8 analog inputs between a master and one or more remote units. A basic system consists of one master station and one remote station each with 8 dry contact and 8 analog inputs and 8 ‘C’ relay contact and analog outputs. All signals are bi-directional so that data may be read from the remote station and sent to it.
The Fiber Optic communication provides many benefits over traditional electronic based communications methods such as superior noise immunity, long distance communication with minimal signal degradation, and high security.

Specifications & Manuals:

  • High Input-Output-Power Isolation (2000VAC Test for 1 Second)
  • Media: Single Mode or Multi Mode Fiber
  • Connections: ST or SC
  • Range: up to 20 km with Single Mode Fiber
  • Operating Temperature: -4°F to +140°F (-20°C to +60°C)
  • Relay Contacts: 10A 1/8HP @ 125VAC or 6A 1/8HP @ 277VAC
  • Power: 117VAC, 60/50 Hz, 24VDC Available
  • Enclosure: NEMA4X (NEMA12 available as an option)
  • Approvals: ETL 3118354: UL 60950-1-2007; CSA-C22.2 No. 60950-1-07

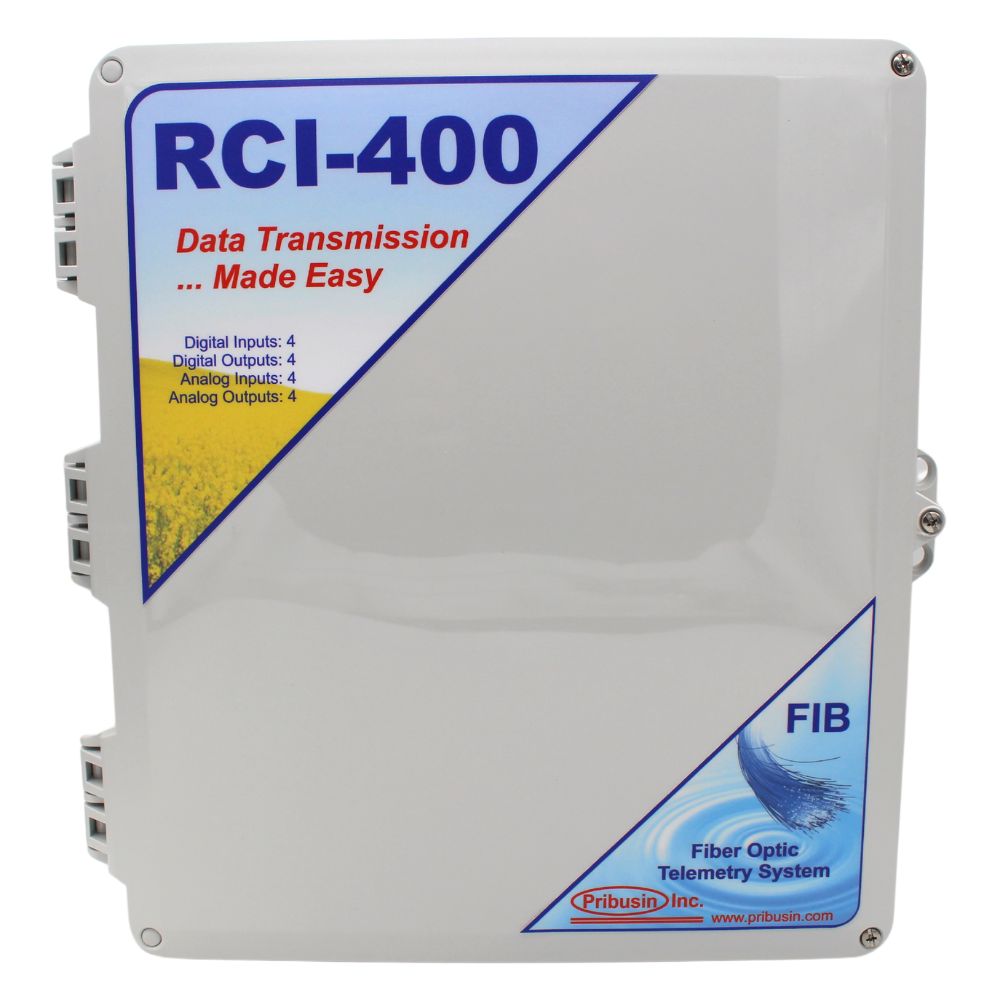

RCI-400-FIB: Remote Control Signal Interface With Fiber Optic Link

Key Features:

  • Bi-directional Communication using Fiber Optic Cable
  • Single-Mode or Multi-Mode Media Option
  • ST or SC Connection Option
  • 8 Dry Contact and 8 Analog Inputs
  • 8 ‘C’ Relay Contacts and 8 Analog Outputs
  • Point-to-Point or Host-to-Mulitipoint Topologies
  • No Calibration Required
  • Microprocessor Controlled for High Accuracy
  • Power: 117 VAC 50/60 Hz (Optional 24VDC)
  • High Noise Rejection

Function:

The RCI-800-FIB is a bi-directional data communication system that exchanges the status of 8 dry contact inputs and 8 analog inputs between a master and one or more remote units. A basic system consists of one master station and one remote station each with 8 dry contact and 8 analog inputs and 8 ‘C’ relay contact and analog outputs. All signals are bi-directional so that data may be read from the remote station and sent to it.
The Fiber Optic communication provides many benefits over traditional electronic based communications methods such as superior noise immunity, long distance communication with minimal signal degradation, and high security.

Specifications & Manuals:

  • High Input-Output-Power Isolation (2000VAC Test for 1 Second)
  • Media: Single Mode or Multi Mode Fiber
  • Connections: ST or SC
  • Range: up to 20 km with Single Mode Fiber
  • Operating Temperature: -4°F to +140°F (-20°C to +60°C)
  • Relay Contacts: 10A 1/8HP @ 125VAC or 6A 1/8HP @ 277VAC
  • Power: 117VAC, 60/50 Hz, 24VDC Available
  • Enclosure: NEMA4X (NEMA12 available as an option)
  • Approvals: ETL 3118354: UL 60950-1-2007; CSA-C22.2 No. 60950-1-07

RCI-800-FIB: Remote Control Signal Interface With Fiber Optic Link

Key Features:

  • Bi-directional Communication using Fiber Optic Cable
  • Single-Mode or Multi-Mode Media Option
  • ST or SC Connection Option
  • 8 Dry Contact and 8 Analog Inputs
  • 8 ‘C’ Relay Contacts and 8 Analog Outputs
  • Point-to-Point or Host-to-Mulitipoint Topologies
  • No Calibration Required
  • Microprocessor Controlled for High Accuracy
  • Power: 117 VAC 50/60 Hz (Optional 24VDC)
  • High Noise Rejection

Function:

The RCI-800-FIB is a bi-directional data communication system that exchanges the status of 8 dry contact inputs and 8 analog inputs between a master and one or more remote units. A basic system consists of one master station and one remote station each with 8 dry contact and 8 analog inputs and 8 ‘C’ relay contact and analog outputs. All signals are bi-directional so that data may be read from the remote station and sent to it.

The Fiber Optic communication provides many benefits over traditional electronic based communications methods such as superior noise immunity, long distance communication with minimal signal degradation, and high security.

Specifications & Manuals:

  • High Input-Output-Power Isolation (2000VAC Test for 1 Second)
  • Media: Single Mode or Multi Mode Fiber
  • Connections: ST or SC
  • Range: up to 20 km with Single Mode Fiber
  • Operating Temperature: -4°F to +140°F (-20°C to +60°C)
  • Relay Contacts: 10A 1/8HP @ 125VAC or 6A 1/8HP @ 277VAC
  • Power: 117VAC, 60/50 Hz, 24VDC Available
  • Enclosure: NEMA4X (NEMA12 available as an option)
  • Approvals: ETL 3118354: UL 60950-1-2007; CSA-C22.2 No. 60950-1-07
